Data Quality

Data Quality
- Terms
  - Error / uncertainty
    - = reliability ... correctness
      - "what is real" vs. "what you got"
    - attribute: description/ measurement
      - = "what"
      - realm of the specialist/ discipline
      - e.g. cruising sampling error
    - location / position
      - = "where"
      - emphasis of this lecture
      - common to all disciplines ... maps
      - "error/ uncertainty" in location
      - absolute vs. relative position

        absolute - position w.r.t. the datum (GPS location +- 5m)

        relative - position w.r.t. other features

        which is of greater concern?

        i.e. mapping a wildlife tree to reserve
    - temporal
      - = "time"
      - is it still current? ... or did Jim log it ;-)
  - measurement scale
    - nominal
      - = "named", or categories
      - no comparison between features (Main Street vs. Commercial Drive)
    - ordinal
      - = categories that are "ranked" or "ordered"
      - can compare

        captain vs. major vs. colonel vs. general

        1) very poor - 2) poor - 3) "meh" - 4) good - 5) very good
      - but no set quantitative increments

        major is not "twice as good as" captain

        it's just a higher rank

        likely biggest "jump" is from colonel to general

        ... NO MATH operations
    - interval
      - numeric values: intervals along a measured scale
      - zero does not = "nothing"
      - temperature is the classic example
      - add/subtract OK (ratios not meaningful)

        15C & 30C

        30C is 15C warmer

        but it is not "twice as warm"

        0C doesn't mean there is "NO" temperature
    - ratio
      - numeric values: intervals along a measured scale AND zero means zero
      - money, volume, trees/ha are examples

        $5 & $10

        $10 is $5 more than just $5

        $10 is twice as much as $5

        ... and $0 means I have NO $$
      - most of our forestry measures (and map measures) are RATIO
  - primary v. secondary data
    - primary ... YOU collected it (GPS and inventory tree measures)
    - secondary ... "second hand", someone else collected it (e.g. gov't)
    - quality
      - how good is the data you bought?
      - ... the data you collected and passed on to someone else?
  - metadata
    - data about data
      - who: source of data
      - how: collection methods
      - where: extents
      - when: date
      - other: proj/ datum
      - there are standards for this (boring) stuff
  - Resolution
    - = smallest feature mapped
    - raster -> pixel resolution
    - vector -> MMU (min. mapping unit, = smallest area mapped)
    - determined in data capture stage
      - in the field

        inventory for Woodlot ... 2 ha

        ecol. unit in a cut block ... 1/2 ha
      - satellite image resolution (= pixel size ... 100m ... 10m)
  - Completeness
    - project not yet finished
    - data unavailable (private vs. gov't; different country - Sorghum)
    - data not collected "at that scale" (i.e. towns <20,000 pop'n)
  - Consistency
    - "uniformity" ... collected in consistent manner
    - e.g. lake bdy
  - Compatibility
    - relates to combining data sets
    - is the new map layer compatible with the rest of the map layers?
    - scale & consistency are usually the determining factors
    - combining 2 maps ... at best error is now that of the map w/ greatest error
  - Applicability
    - refers to appropriateness of data to a situation
    - elevation & snow free days?
    - elevation & income?
- Sources of Error (Uncertainty)
  - Data Modeling
    - the forest
      - perspective

        ecologist

        wildlife manager

        forester

        climate specialist (global warming)

        environmentalist/ preservationist

        mtn. biker
      - 3 possible views (spatial entities)

        individual trees = points

        stands of similar trees = polygons

        attribute (height) = continuous variable = surface
    - perception (needs) dictate
      - conceptual model used (discrete vs. field; ... point, polygon, surface)
      - how forest is measured
      - wildlife manager = perservationist = forester ???
    - logical model
      - raster

        resolution sets limits for feature size

        no topological relations (adjacency, connectivity, containment) possible
      - vector

        forces 'hard boundaries'

        hard to model "fuzzy boundaries" (remember "wetness")
  - Original Data Capture
    - data sources
      - field survey

        instrument error

        technique

        GPS

        MMU
      - satellite images - resolution, 30m or 1m
    - "nature of the boundary"
      - distinct (forest/ agriculture)
      - gradual (change in forest up hill ...)
    - consistency of capture
    - density of observations
      - spot hts (peaks/ valleys?)
      - enough plots to meet sampling error
  - Data Encoding
    - paper map
      - original drafting errors
    - digitizing
      - poor tracing
      - hardware limitations
  - Data Integration
    - raster - vector conversion (V -> R -> V)
    - sliver polygons (integrate soils and veg. map)
    - edge-matching
      - align features that cross adjacent mapsheets
    - rubbersheeting
      - stretch/shrink common features when combining in overlay fashion
      - e.g. city boundary = outer lines of all subdivisions
      - e.g. lake boundary when combining wetland and stream maps
  - Analysis

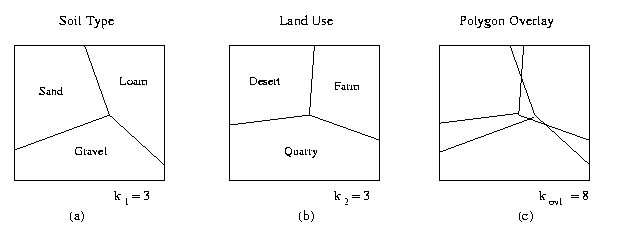

    - vector overlays ... can produce slivers
    - "estimators": spatial interpolation, density, etc.
      - diff. methods (IDW vs.spline)
      - diff. input parameters (power 2 or 3, search area, etc.)
  - Output
    - generalization
      - why ... scale / audience
      - examples

        simplification

        smoothing

        aggregation (combination)

        exaggeration

        displacement
      - ... can result in positional inaccuracies
    - map scale
      - pen width often ~1mm thick ...
      - 1mm on a 1:20,000 map?
